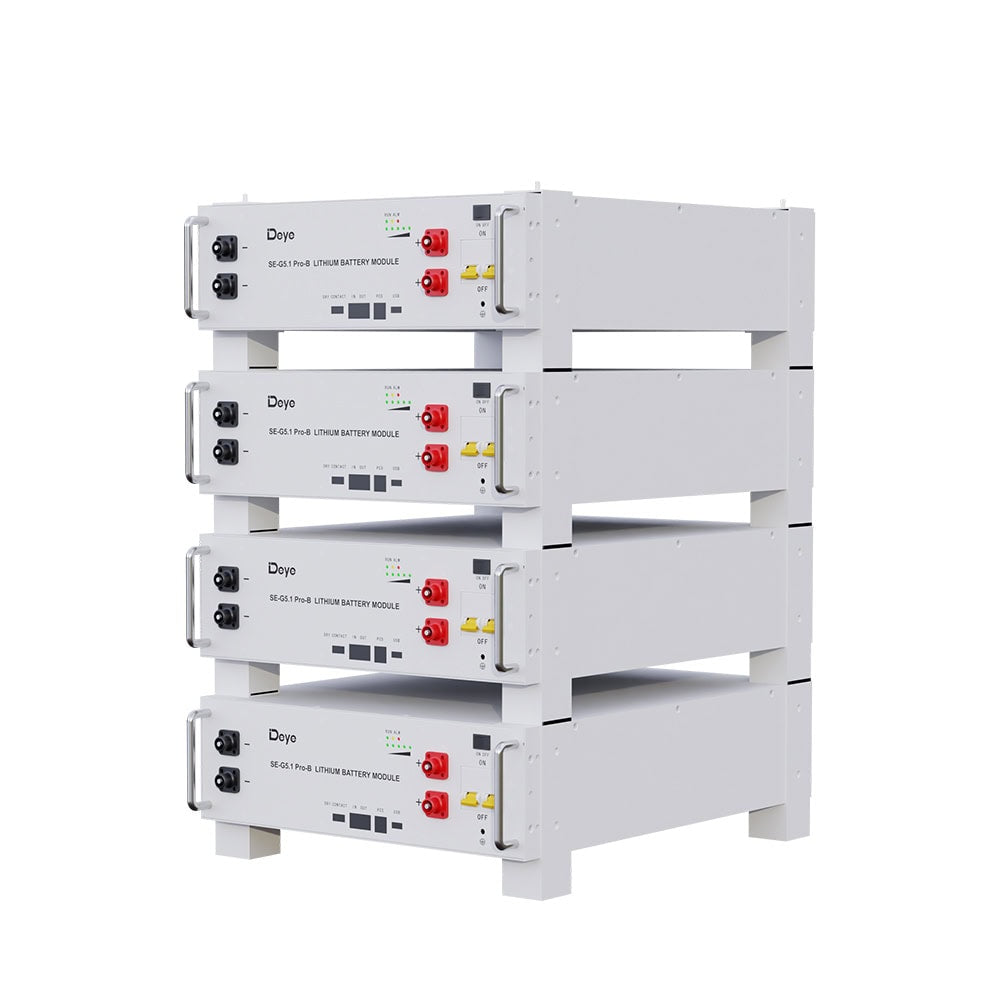

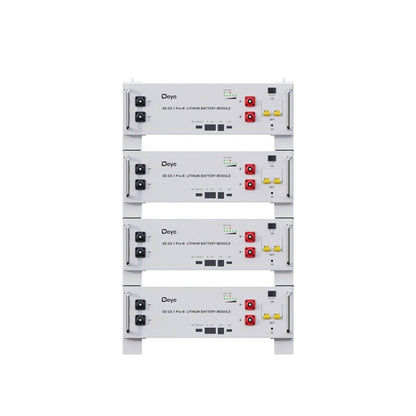

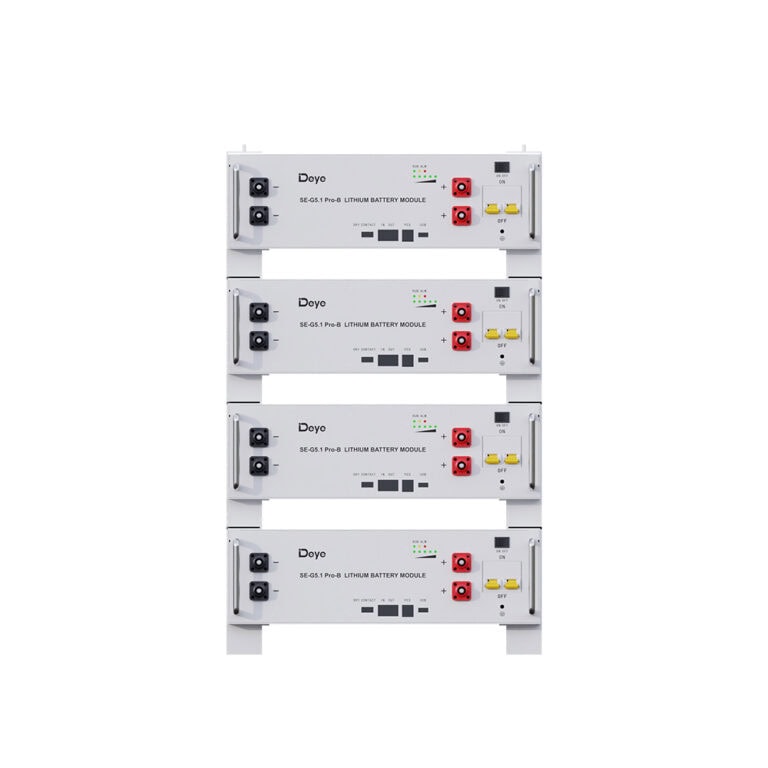

Deye 5.12kWh Low Voltage LFP Rack Battery Module
Low-voltage LFP rack battery module for solar storage systems
The Deye 5.12kWh Low Voltage LFP Rack Battery Module is a rack-mounted lithium iron phosphate battery module for compatible low-voltage solar battery, backup and hybrid energy systems. It is suited to professional installations where modular storage capacity, serviceability and matched system design are important.
Key benefits
- LFP battery storage: Lithium iron phosphate chemistry supports stable, long-life energy storage applications.
- Rack-mounted format: Designed for organised battery rack installations using compatible hardware.
- Modular system design: Supports expandable storage layouts when specified with compatible Deye equipment.
- Professional installation: Suited to solar battery, backup power and hybrid energy projects installed by qualified energy professionals.
Best suited to
- Low-voltage solar battery storage
- Rack-mounted battery installations
- Backup power projects
- Compatible Deye hybrid energy systems
Compatibility and final system design should be confirmed against current Deye documentation before ordering.
- Model
- SE-G5.1 PRO-B
- Dimensions
- W 440 × D 540 × H 133 mm
- Weight
- 45.0 kg
- Warranty
- 10 years
- IP Rating
- IP20
- Installation Method
- Rack Mounted
- Battery System Voltage
- Low Voltage
- Nominal Battery Voltage
- 51.2 V
- Energy kWh
- 5.12 kWh
- Capacity Ah
- 100.0 Ah
- Battery Chemistry
- LFP
