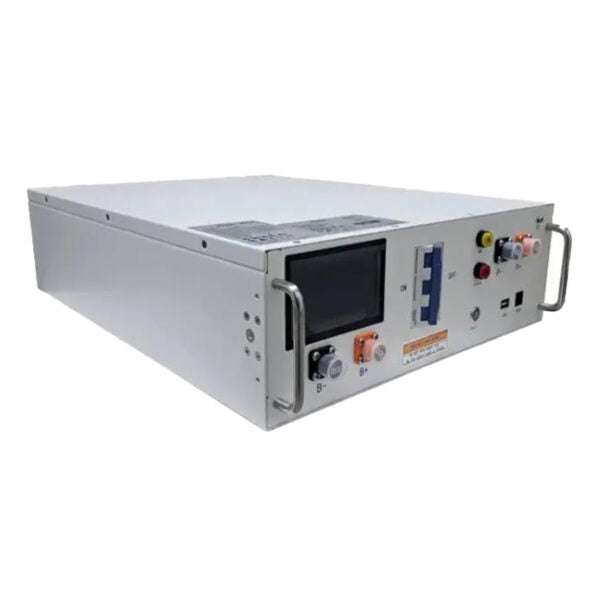

Deye HVB750V/100A-EU High Voltage Battery Control Box

High-voltage battery cluster control box for Deye BOS-G systems

The Deye HVB750V/100A-EU is a high-voltage battery cluster control box for compatible Deye BOS-G battery systems. It manages the high-voltage battery cluster interface and is used with BOS-G rack-mounted battery modules in professionally designed energy storage installations.

Key features

• BOS-G control component: Designed for compatible Deye BOS-G high-voltage battery clusters.
• European/UK standard model: Listed as the high-voltage battery cluster control box for European or British Standards in the BOS-G datasheet.
• High-voltage operating range: 120–750 Vdc operating voltage.
• 100A nominal current: Rated at 100A nominal charge/discharge current, with 125A maximum charge/discharge current.
• System communication: BOS-G systems support CAN2.0 / RS485 communication.

Key specifications

• Model: HVB750V/100A-EU
• Operating voltage: 120–750 Vdc
• Nominal charge/discharge current: 100A
• Maximum charge/discharge current: 125A
• Operating temperature: -20°C to 55°C
• Ingress protection: IP20
• Dimensions: 440 × 565 × 150 mm

Compatibility and final system design should be confirmed against the current Deye BOS-G datasheet and installation requirements before ordering.
