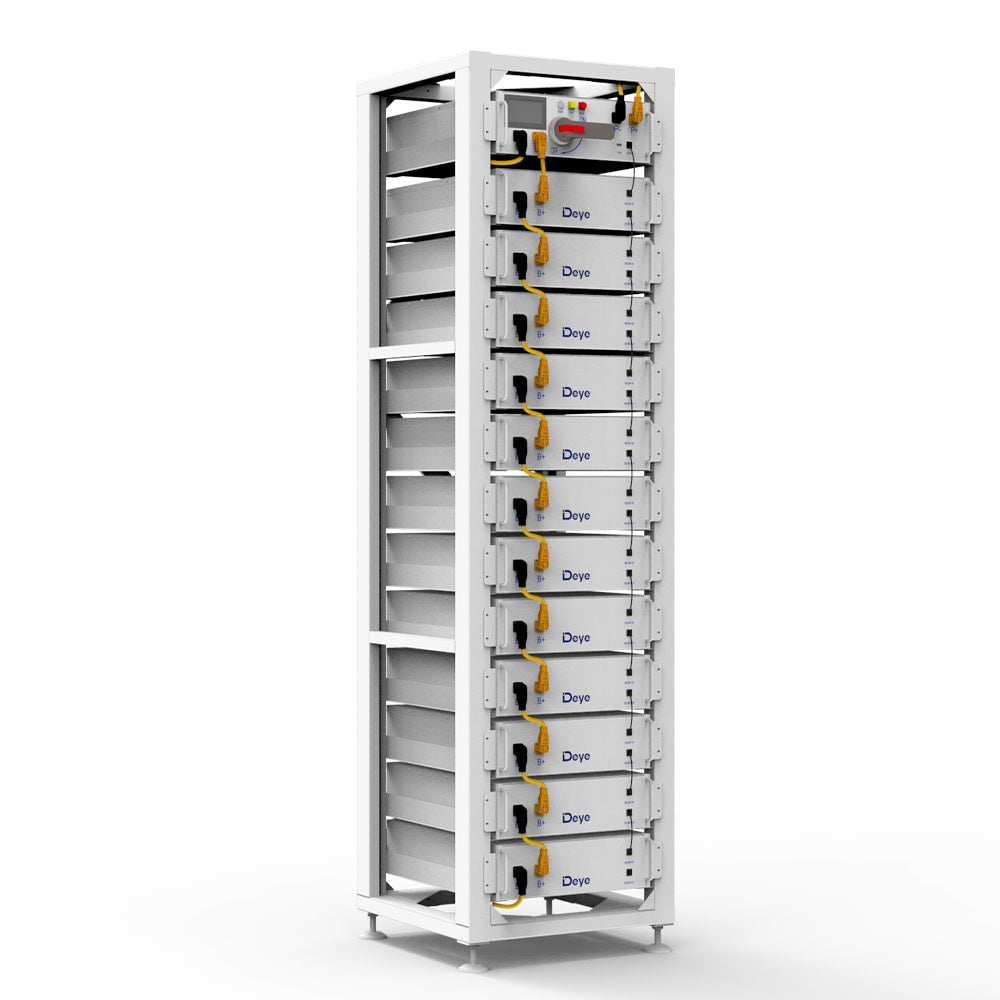

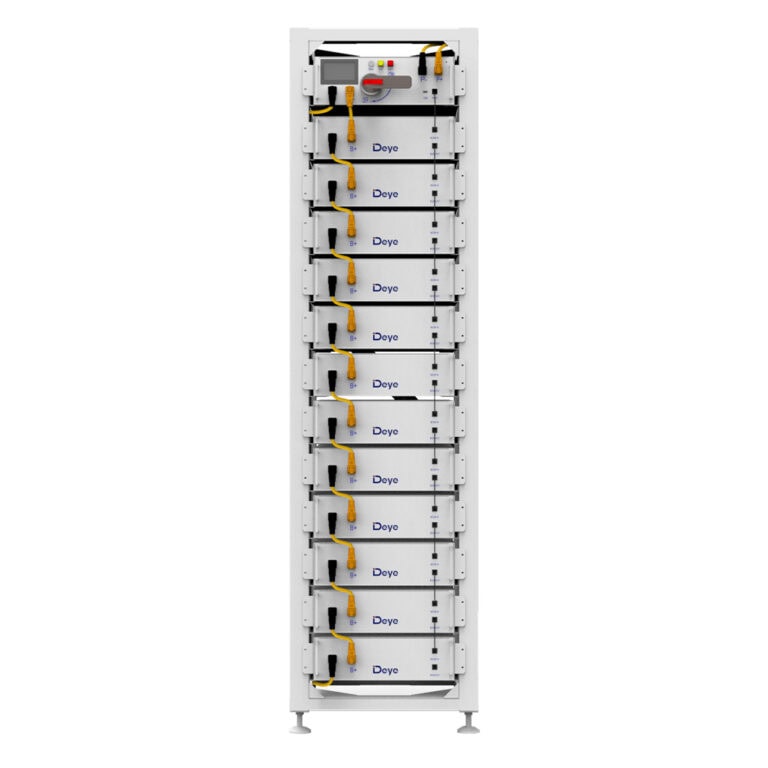

Deye 5.12kWh High Voltage Battery Module
Reliable LFP storage for solar and backup systems
The Deye 5.12kWh High Voltage Battery Module is an LFP battery storage product for compatible solar, backup and off-grid energy systems. It gives installers a dependable storage option for projects where safety, scalability and long-term serviceability matter.
Key benefits
- LFP battery storage: Lithium iron phosphate chemistry supports stable, long-life energy storage applications.
- Compatible system design: Designed to work within matched inverter and battery system architectures.
- Scalable project options: Supports expandable storage layouts when specified with compatible hardware.
- Professional installation: Suited to solar battery and backup power systems installed by qualified energy professionals.
Best suited to
- Solar battery storage
- Backup power projects
- Off-grid and remote energy systems
- High-voltage battery installations
- Model
- BOS-GM5.1
- Dimensions
- W 440 × D 570 × H 133 mm
- Weight
- 44.0 kg
- Warranty
- 10 years
- IP Rating
- IP20
- Installation Method
- Rack Mounted
- Battery System Voltage
- High Voltage
- Nominal Battery Voltage
- 51.2 V
- Energy kWh
- 5.12 kWh
- Capacity Ah
- 100.0 Ah
- Battery Chemistry
- LFP
