Clenergy PV-ezRack Adjustable Tile Interface with ezClick
The Clenergy PV-ezRack Adjustable Tile Interface with ezClick is a stainless-steel tile-roof interface with an ezClick connection for ECO Rail. Choose a 120 mm or 170 mm horizontal arm.
Part of the PV-ezRack SolarRoof ezClick range, it is manufactured from stainless-steel roof-hook assembly with a Buildex wood screw and supplied in natural stainless steel.
Key features
- 120 mm and 170 mm horizontal arm options.
- Material: Stainless-steel roof-hook assembly with a Buildex wood screw.
- Standards and engineering: AS/NZS 1170.2; refer to product-specific Clenergy datasheet and installation guide.
- Warranty: 25-year PV-ezRack product warranty.
Available options

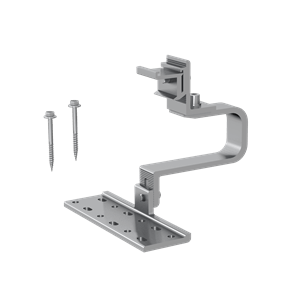

- Horizontal arm length: 120 mm (ER-I-41/EZC/ECO)

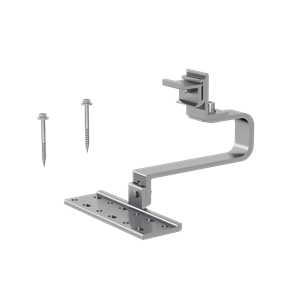

- Horizontal arm length: 170 mm (ER-I-61/EZC/ECO)
Application
Tile roofs; ezClick connection for ECO Rail.
Check the current Clenergy technical documentation and project engineering requirements before specifying or installing this product.
